AGT 57mm "LE" Evo 4-9 Turbocharger
Evo 4-9 AGT 57mm "LE" Turbocharger
UPDATE: Starting January 1st 2025, All Evo 57 and 64 Turbochargers will have our new updated compressor Aero referred to as "LE" Simply referring to the change and improvement of Compressor wheel's "Leading Edge" shape and design.

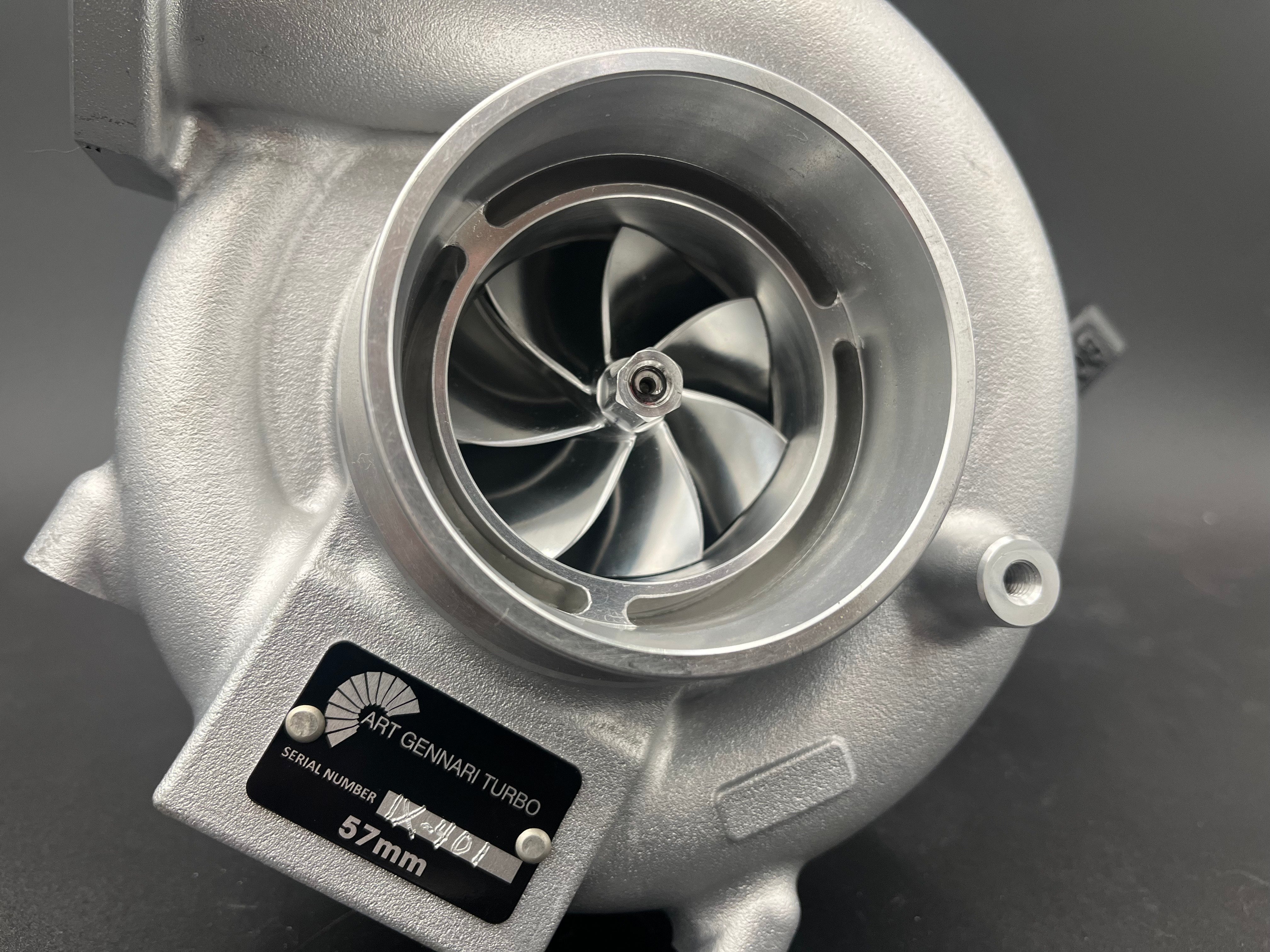

These New Compressor wheels have new Blade Aero, Smaller center hubs for added blade area, Integral compressor nut, and all these features all shave some weight off the wheel. Making for Improved Spool and more flow!
This Turbo's Features:
Flow Rate: 65 lbs/min
Compressor wheel: 57x78mm
Turbine Wheel: 58x67mm
Bearing type: Journal bearing with HD thrust bearing
Inlet size: 3.25" inch T51R style anti surge port compressor housing
Turbine housing: 0.77ARcm Twinscroll or AGT 0.96 AR Stainless steel single scroll
Wastegate: upgraded without wastegate, with 22 psi wastegate, or with 26 Psi Dual port wastegate
Oil Line: High flow oil line included
Bolt-On to your existing OE manifold and downpipe Flange
What's in the Box:
-AGT Turbocharger with T51R Style compressor housing, choice of turbine housing (And wastegate if you choose one)
-Braided Oil feed line with appropriate restrictor
-Oil Drain Gaskets
-Exhaust inlet gasket
-2 AGT Stickers
When installing this turbo on an Evo 4-8, you will need the Evo 9 J-pipe and Coolant lines for correct and proper fitment, if you do not have those or can't find a set, we include them in our Evo 9 Install kit, in the evo 4-9 section.
All AGT Turbochargers are Built to order and subject to a standard 6 week build time unless otherwise specified. Build times may vary.
